Introducing Mitsubishi RMD-50A Kenza Cloud Gateway
Kenza
Cloud is a powerful cloud-based platform for managing and monitoring CITY MULTI
VRF, P-Series, and M-Series commercial HVAC systems remotely. It is accessible
through the link www.kenzacloud.com
What is The RMD-50A, And Why It’s Important Today

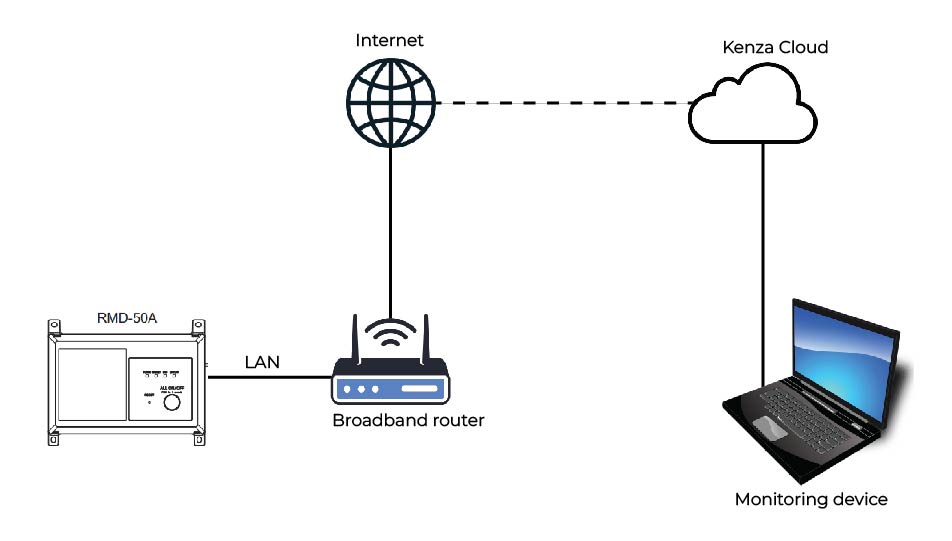

The RMD-50A is the dedicated bridge that connects your
Mitsubishi Electric VRF system's M-NET network directly to the Kenza Cloud
platform. A PC, tablet, smartphone, or other terminal device with a connection
to the Internet is required to use the RMD-50A.
The RMD-50A is a scalable gateway that allows monitoring and
control of up to 50 indoor and 50 outdoor units, making it ideal for multi-zone
or growing commercial environments.
It provides advanced remote analytics,
including maintenance tool file downloads for detailed system data, refrigerant
level checks, and installation verification for CITY MULTI R2-Series branch boxes.
Designed for easy
setup, it supports versatile low-voltage power options and connects directly to
the M‑NET communication cable, streamlining installation in commercial
mechanical rooms while reducing service calls and system downtime.
Who is RMD-50A for: As buildings become smarter and more connected, facility
managers and contractors need efficient ways to monitor, control, and analyze
their HVAC systems remotely.
Use Cases
- Office Complex: A facility manager oversees 40 indoor units and 10 outdoor units from one RMD-50A, adjusting schedules and viewing temperature trends remotely
- Hotel Chain: Each property installs an RMD-50A to monitor refrigerant levels and receive automatic maintenance alerts via Kenza Cloud.
- Retail Network: Stores in remote areas use RMD-50A gateways to diagnose HVAC issues before dispatching a technician, reducing travel costs.
Technical Specs Snapshot
Specification | Detail | |
Supported
Units | 50
indoor + 50 outdoor | |
Power
Supply | TB1: 24 VAC ± 10% (50/60 Hz)
Rated power: Minimum 5 VA and maximum 25 VA
Rated current: Minimum 0.2 A and maximum 1.1 A or
24 VDC ± 10%; Minimum 10 W and maximum 30 W TB2: 17–30 VDC (powered from the M-NET) | |
Communication | M-NET
(TB2 terminals) | |
Network
Interface | Ethernet
(100BASE-TX) | |
Operating
Temp | +14 °F to +131 °F | |
| 7.5 W | |
Dimensions | 6.83 × 5.52 × 2.32 Inches | |
Weight | ~1.10 Lbs. | |
Mounting | Control
cabinet / DIN rail |
