Venstar Wireless Controls and Accessories

Venstar Wireless Controls and Accessories

Venstar is one of the leading HVAC brands in the market that offers a wide range of thermostats and accessories for different applications depending on user needs.

Lets have a look at the different thermostats as well as the available accessories.

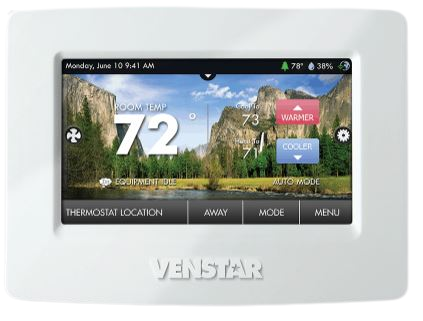

ColorTouch Thermostats

Ventar colortouch thermostat

Residential Thermostats
Commercial Thermostats

Explorer IAQ Thermostats

Venstar explorer iaq thermostat

Residential Thermostats
Commercial Thermostats

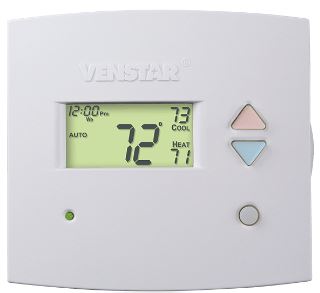

Explorer Thermostats

Venstar explorer thermostat

Residential Thermostats
Commercial Thermostats


Explorer Mini Thermostats

Venstar explorer mini thermostat

Residential Thermostats
Commercial Thermostats
T2000
T2100

FlatStat Thermostats

Venstar flatstat thermostat

Residential
Hotel


Slimline Thermostats

Venstar slimline thermostat
Small Series Thermostats

Venstar small series thermostat

Residential
Commercial

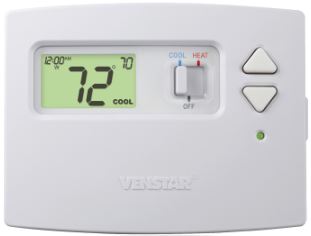

Value Series Thermostats

Venstar value series thermostat

Programmable
Non-Programmable

ACCESSORIES

Explorer Wi-Fi Module

ACC-VWF2

ACC-VWF2 (Replaces ACC-VWF1) allows thermostat's access over the internet.
Compatible with: T3700, T3800, T3900, T4700, T4800, T4900

Explorer Z-Wave Module

ACC-VZW1

ACC-VZW1 expands the compatibility of your Explorer thermostat with the Z-Wave Plus module. It allows connections to other devices and hubs running on Z-wave technology.
Compatible with: T3700, T3800, T3900, T4700, T4800, T4900

ACCTSENWIFIPRO Wi-Fi Temperature Sensor (Replaces ACCTSENWIFI)

ACCTSENWIFIPRO

Venstar Wi-Fi temperature sensor that allows remote temperature measurement (outdoor, indoor room temperature averaging, supply & return temperature sensing, and walk-in refrigeration & freezing monitoring).
  1. Compatible with ColorTouch: T7850, T7900, T8850, T8900
  2. Compatible with Explorer: T3700, T3800, T3900, T4700, T4800, T4900, T4900SCH
  3. Compatible with Explorer Mini: T2000, T2050

ACC0401 Indoor Sensor

ACC0401

Venstar ACC0401 remote indoor temperature sensor with an override button that offers the user ability to change to an occupied mode for after-hours heating or cooling.
Compatible with: T1100FS, T1700, T1800, T1900, T2700, T2800, T2900 or TSTATEZ

ACC0400 Outdoor Sensor
ACC0400

The sensor allows the outdoor air temperature to be sent to the thermostat.
The high and low outdoor air readouts for the day can be displayed on the T1800, T1900, T2800 and T2900 thermostats.
When used as remote room sensor, the accessory can be used with the Venstar T1800, T1900, T2700, T2900 and T2900SCH.

ACC0402 Duct Sensor

ACC0402
Remote Duct Sensor for Venstar thermostats is a digital temperature sensor with 5 feet long cable.
Compatible with: T1100FS, T1700, T1800, T1900, T2700, T2800, T2900 or TSTATEZ

ACC-DSEN Remote Duct Sensor

ACC-DSEN
Remote duct temperature sensor that may be used as a monitoring sensor or a control sensor,
Compatible with: (When used as a MONITORING sensor) T5800, T5900, T6800, T6900, T7800, T7850, T7900, T8800, T8850, T8900, T3700, T3800, T3900, T4700, T4800, T4900, T4900SCH
Compatible with: (When used as a CONTROL sensor) T5800, T5900, T6800, T6900, T7800, T7850, T7900, T8800, T8850, T8900, T3800, T3900, T4700, T4900, T4900SCH

ACC-TSEN 10K Remote Sensor

ACC-TSEN

Remote temperature sensor that can be used as a monitoring sensor or a control sensor.
This sensor can be used indoors or outdoors.
  1. Compatible with: (When used as a MONITORING sensor) T5800, T5900, T6800, T6900, T7800, T7850, T7900, T8800, T8850, T8900, T3700, T3800, T3900, T4700, T4800, T4900, T4900SCH, all colortouch and 3 Explorer
  2. Compatible with: (When used as a CONTROL sensor) T5800, T5900, T6800, T6900, T7800, T7850, T7900, T8800, T8850, T8900, T3800, T3900, T4700, T4900, T4900SCH, all colortouch Thermostats plus 2 explorer thermostats T3700 and T3800

ACC0414RF Wireless Sensor

ACC0414REC

Wireless Remote Room Sensor that can be used to monitor indoor or outdoor temperature when used in conjunction with ACC0414REC receiver.

ACC0414REC Wireless Receiver


The wireless receiver allows the outdoor air temperature to be sent to the thermostat.
It can be used with the T1100FS, T1700, T1800, T1900, T2700, T2800, T2900 or TSTATEZ thermostats
The high and low outdoor air readouts for the day can be displayed on the T1800, T1900, T2800 and T2900 thermostats.
When used as remote room sensor, the accessory can be used with the Venstar T1900, T2700, T2900 and T2900SCH thermostats.

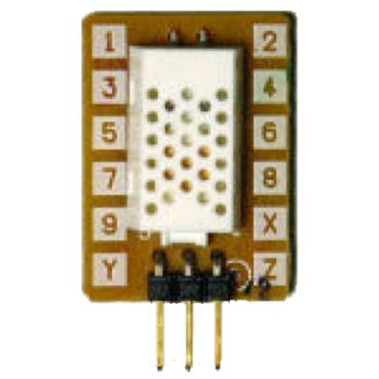

ACC0430 Humidity Module

ACC0430

Simple, snap-in module that provides humidify/dehumidify control between thermostat and HVAC unit equipped with a humidification/dehumidification system. It displays relative humidity level as measured at thermostat location.
Compatible with: T1800, T2700, T2800, T2900

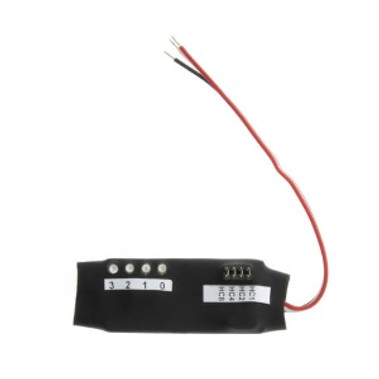

ACC0410 Add-A-Wire

ACC0410

In applications where additional wiring cannot be run, the Add-A-Wire accessory can be used to add a wire to the thermostat.
  1. Allows 5 wire thermostats to use only 4 wires
  2. Also allows 5 wires to work like 6 wires

ACC0620 Explorer Lock Ring

ACC0620
It prevents the front door on a Slimline thermostat from being opened by unauthorized users.
Compatible with: T1700, T1800, T1900, T2700, T2800, T2900, T2900SCH

ACC0625 Explorer Lock Ring

ACC0625

Venstar ACC0625 prevents the use of the thermostat buttons after it has been installed.

Slimline Door ACC0440

ACC0440

This is a replacement door for Venstar Slimline Platinum series thermostats.
Compatible with: T1700, T1800, T1900, TSTATEZ, T2700, T2800, T2900

TIB515 Interface for Trane Equipment
TIB515

This Interface Board allows any 24VAC thermostat to be connected to applicable Trane Voyager equipment by converting old Trane HVAC systems DC Voltage signals into traditional 24VAC signals.
Compatible with Trane Voyager Units produced from 1991 to mid 2003, the serial number on the units will start with a letter "A-Z" or a number less than "322".

ACC0432 EZ Programmer

ACC0432

The EZ programmer accessory allows the user to quickly transfer the configuration settings from one thermostat to another.
Compatible with: T1700, T1800, T1900, T2700, T2800, T2900, T2900SCH

Wireless Module ACC0434

ACC0434

ACC-0434 RF Wireless Module allows additional local thermostats to be connected to the Venstar Comfort Call (ACC0433) Base Station.
Compatible with: T1700, T1800, T1900, T2700, T2800, T2900, T2900SCH

ACC0800 Power Supply for Wireless Thermostat

Optional power supply for wireless thermostat, with this accessory the T1100RF wireless thermostat does not need batteries.
Compatible with: T1100RF

Extra-Zone ACC0450

ACC0450

It adds an extra zone for your system to control over or under conditioned areas.

ACC0454 Wi-Fi Key

ACC0454

Venstar ACC0454 Skyport Wi-Fi key allows thermostats to communicate with a Wi-Fi router and be accessible from any PC or using the free Venstar smartphone apps.
Compatible with: T5800, T5900, T6800, T6900

Check out the Venstar and Totaline equivalent models in the article here.

Learn more on HVAC systems and controls in the link here.

Contact our HVAC Controls Engineering team for assistance with custom HVAC control solutions.
