Bias Tee DC Injectors

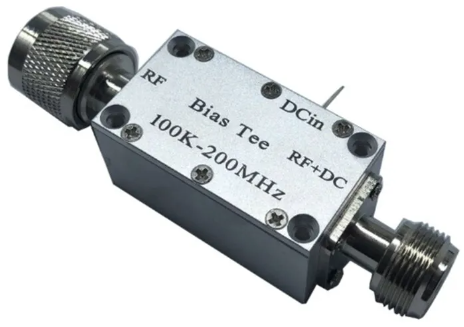

A bias tee DC injector is a three-port Radio Frequency (RF) device whose primary function is to supply DC power to connected RF devices. It does this without affecting the RF signal or RF performance of the network. It essentially combines two different signals (RF and DC power) onto a single coaxial cable or in some instances separate them depending on the signal flow.

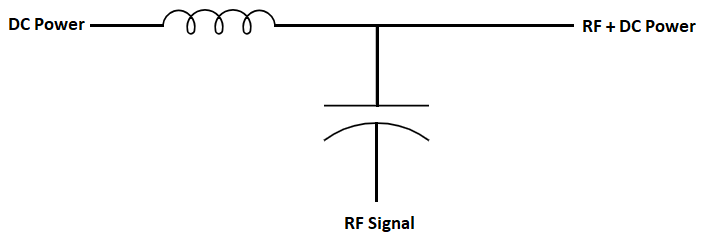

The typical bias tee consists of an inductor and a capacitor arranged in a T-configuration. The capacitor allows AC signals (the RF signals) to pass through while blocking DC, ensuring that only the RF signals reach the connected RF equipment. On the other hand, the inductor allows DC to pass through while blocking the RF signals, directing the DC power to the equipment without interfering with its RF functionality.
It finds use in situations where we need to power remote antenna amplifiers without necessarily running two separate cables for the RF signal and the DC power. The bias tee injector reliably superimposes the DC power onto the RF signal allowing single cable use.
Key Features to look at:
- Frequency Range: Bias tees need to support the frequency range of the RF signals they are used with, ensuring minimal loss and distortion.
- Voltage Handling: They must be capable of handling the required DC voltage levels necessary for the circuit.
- Low Insertion Loss: High-quality bias tees have low insertion loss, meaning they do not significantly reduce the power of the RF signal passing through them.
- Isolation: Effective isolation between the DC and RF paths is crucial to prevent interference and maintain signal integrity.
- Bias tees are widely used in applications such as satellite communications, radio transmitters, and anywhere RF equipment requires DC power injected into the RF line.
They can be outfitted with a variety of connectors to meet the specific needs of the RF devices they interface with. Common varieties include SMA, N-type, and BNC connections, which are selected based on the frequency range, power handling capability, and physical toughness required for the application.
Have a look at some recommended and reliable bias tee DC injectors here or contact a power specialist for recommendations.
