Airzone Aidoo Controller Interfaces

Airzone Aidoo Controller Interfaces

Automation and intergration of home systems with HVAC units and controls is key for convenience, comfort and energy savings. Aidoo Wireless Interfaces allow old and new HVAC units to be connected and integrated with home automation systems.

1. Aidoo Pro Inverter/VRF Controller



Airzone AZAI6WSPMEL Aidoo Pro enables the remote control of indoor units through an Airzone iOS/Android App. With the app, the adapter provides remote control and monitoring of indoor units. It features third-party smart thermostat integrations (3PTI).

2. Aidoo Pro Fan coil



Aidoo AZAI6WSPFAN manages and integrates fancoil units remotely from the Cloud online control with the “Airzone Cloud” App (available for iOS and Android). It is externally powered at 110 / 230 Vac.

3. Aidoo KNX Controller



Aidoo AirZone AZAI6KNXDA0 device for the management and integration of indoor units in KNX TP-1 control systems. Inverter/VRF AC unit can be controlled by using any of the other devices connected within the KNX system.

4. Inverter/VRF Wi-Fi Controller

Airzone's  Aidoo AZAI6WSCDKB is the best Inverter/VRF Wi-Fi controller in the market today, combining seamless integration with smart technologies. With the app, the adapter provides remote control and monitoring of S21 indoor units .

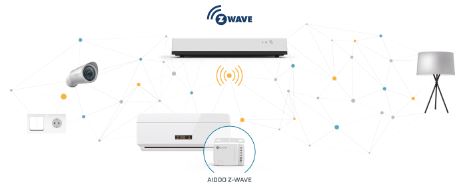

5. Aidoo Z‑Wave Plus

The z-Wave Plus interface transforms an inverter/VRF into a Z‑Wave device.


This adapter is compatible with all the controllers that hold the Z‑Wave and Z‑Wave Plus certifications. It acts as an independent repeater to improve network reliability as well.

Check out the article here with more information on Z-Wave technology.

Below is how they compare.


Pro Inverter VRF
Wi-Fi Inverter VRFPro Fan Coil
KNX Inverter VRF
Z-Wave Plus Inverter VRF
Unit Control
Communication Gateway
Communication Gateway
0-10V/ 3 Speeds
Communication Gateway
Communication Gateway
Connectivity
Wi-Fi Dual Band 2.4/5 GHz
Wi-Fi Band 2.4 GHz
Wi-Fi Dual Band 2.4/5 GHz
KNX
Z-Wave Plus
Control/ Settings
Airzone Cloud App
Airzone Cloud App
Airzone Cloud App
ETS
Z-Wave
App Available?
Yes
Yes
Yes


Voice Control
Yes
Yes
Yes


Cloud API
Yes
Yes
Yes


Power Source
12 VDC (External)
12 VDC (Indoor Unit/ External)
220 VAC
Indoor Unit& KNX Network
12 VDC (Indoor Unit/ External)
RS485 Integration
Modbus& Bacnet MS/TP
Modbus
Modbus& Bacnet MS/TP

Modbus

Here are more Wi-Fi Control Interfaces or modules used with other HVAC Indoor Units.

Learn more on HVAC systems and controls in the link here.

Contact our HVAC Controls Engineering team for assistance with custom HVAC control solutions.
